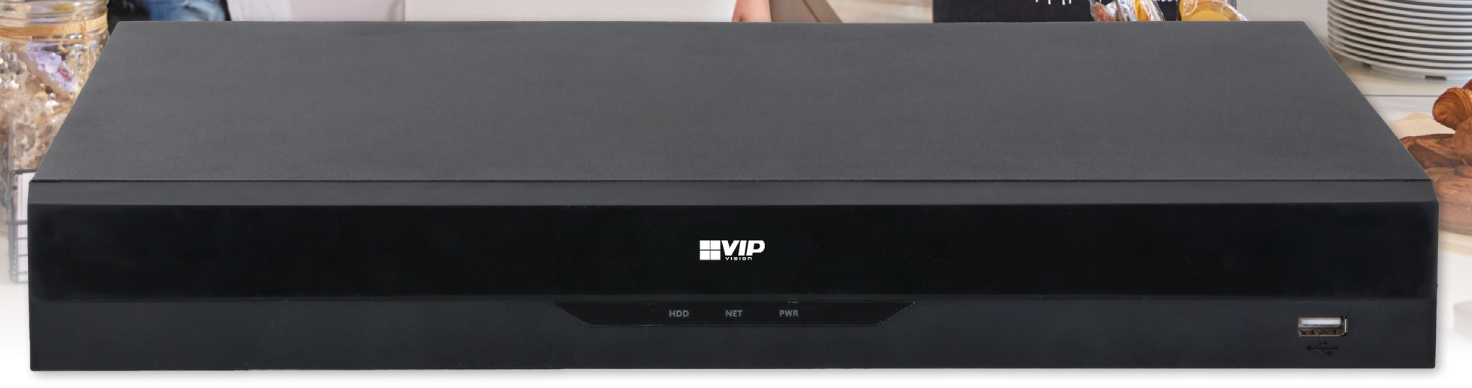

Professional AI Series 8CH PoE NVR with 2 x HDD Bays
Manufacturer
VIP Vision
$0.00
Excluding taxes: $0.00Description
The NVR8PRO-I transforms the way you secure your home or small business. Use superb accuracy AI detection to take the guesswork out searching footage and get important AI video notifications as they happen. Experience peace of mind with capacity for months of footage storage and integrate a huge range of cameras to protect what's most important to you.
Product features:
• Record up to 16.0MP with H.265 video compression
• Up to 256Mbps bandwidth (180Mbps AI enabled)
• Suite of AI functions for improved alerts & playback
• Supports AI face detection and recognition via NVR
• Supports AI human/vehicle detection via NVR
• Supports ANPR by camera up to 4 channels
• 2 x SATA bay with HDD support up to 16TB/bay
• Built-in 8 port Power over Ethernet switch
• HDMI (4K) and VGA simultaneous video output
• Backup via external USB device or local network
Product features:
• Record up to 16.0MP with H.265 video compression
• Up to 256Mbps bandwidth (180Mbps AI enabled)
• Suite of AI functions for improved alerts & playback
• Supports AI face detection and recognition via NVR
• Supports AI human/vehicle detection via NVR
• Supports ANPR by camera up to 4 channels
• 2 x SATA bay with HDD support up to 16TB/bay
• Built-in 8 port Power over Ethernet switch
• HDMI (4K) and VGA simultaneous video output
• Backup via external USB device or local network
Specifications
General
Video Input
8 Channels
PoE
Yes
HDD Capacity
2
Processor & Operation
Industrial-grade processor, Embedded Linux OS, Web Interface / Local GUI
Interoperability
ONVIF 21.12(Profile T; Profile S; Profile G); CGI; SDK. Supports Panasonic, Sony, Samsung, Axis, Pelco, Arecont, Canon. Chrome, IE9 and later, Firefox support.
App Integration
iOS / Android
Recording
Recording Resolution
Configurable from 16.0MP (4920 x 3264) to CIF (352 x 288)
Network Bandwidth (AI Disabled)
256Mbps (incoming/recording/outgoing)
Network Bandwidth (AI Enabled)
180Mbps (incoming/recording/outgoing)
Video & Audio Compression
Video: Smart H.265+ / H.265 / H.264 / H.264+ / MJPEG, Audio: G.711a / G.711u / PCM / G726
Playback Channels
Up to 8 channels
Playback Modes
General Recording, Motion Detection, Intelligent Events, Alarm Triggers
Decoding Capacity (AI Disabled)
4CH@8.0MP/25fps, 8CH@4.0MP/25fps
Decoding Capacity (AI Enabled)
8CH@1080p/25fps
Backup Method
USB device / Network
Interface
HDD
2 x SATA bays, up to 16TB per bay
Audio
1 channel input (RCA), 1 channel output (RCA)
Alarm Interface
4 channels input, 2 channels output
Alarm Types
General (motion, video loss, scene change, etc.), Anomalies (camera disconnect, disk full, IP conflict , etc.), Intelligent (AI alerts, face, human/vehicle, etc.)
Alarm Actions
Begin record, take snapshot, camera external alarm output, audio, buzzer, NVR log, camera preset, email
Display Output
1 x HDMI (up to 3840 x 2160), 1 x VGA (up to 1920 x 1080)
Display Split
1st & 2nd Screens: 1/4/8/9
Display Mode
HDMI1 + VGA1 (Mirror)
Network Input
1 x 1000Mbps Ethernet uplink, 8 x PoE 100Mbps (802.3af/at)
Network Functions
HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, Easy4ip
USB & Other Inputs
1 x Front USB 2.0, 1 x Rear USB 2.0
Artificial Intelligence
NVR Operated AI
Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection
Supported Camera AI
Face Detection, Face Recognition, AI Tripwire/Intrusion and AI Human/Vehicle Detection, People Counting, Crowd Distribution, Heatmap, ANPR, Audio Detection, Thermal Alarm, Fisheye Dewarp (Via PC web interface only)
Face Detection Functions
Gender, Age Group, Glasses, Expressions, Face Mask, Beard
Face Detection (By NVR)
1 channel (up to 12 face images per second, per channel)
Face Detection (By Camera)
8 channels
Face Recognition Capacity
NVR Supports up to 10 face databases and 200,000 face images
Face Recognition (By NVR)
1 channel (Face detection via NVR video stream analysis; Face recognition performed by NVR) 8 channels (Face detection performed via Face Capture cameras via image stream; Face recognition performed via NVR)
Face Recognition (By Camera)
8 channels
Human/Vehicle Detection Functions
AI Tripwire & Intrusion (IVS), AI Motion Detection (SMD)
Human/Vehicle Detection (By NVR)
IVS: 2 channels (10 rules per channel), SMD: 4 channels
Human/Vehicle Detection (By Camera)
IVS: 8 channels, SMD: 8 channels
ANPR Functions
Up to 20,000 plate numbers, blocklist & allowlist
ANPR (By Camera)
4 channels
Video Metadata Functions
-
Video Metadata (By NVR)
-
Video Metadata (By Camera)
-
Environment
Power Supply
100~240VAC / 47~63 Hz
Power Consumption
NVR: <10W (without HDD) / PoE: Max 25.5W for single port, 72W total
Operating Environment
-10°C ~ +55°C / 10 ~ 93%RH
Rackmountable
No
Rackmount Units
1RU
Dimensions
375mm x 329mm x 53mm
Weight
2.51kg (without HDD)
Warranty (Years)
4
Shipping Weight and Dimensions includes product packaging
Width
147 mm
Height
451 mm
Depth
425 mm
Weight
3.66 kg
