Residential Series Touchscreen IP Intercom Monitor
$0.00
Excluding taxes: $0.00Description

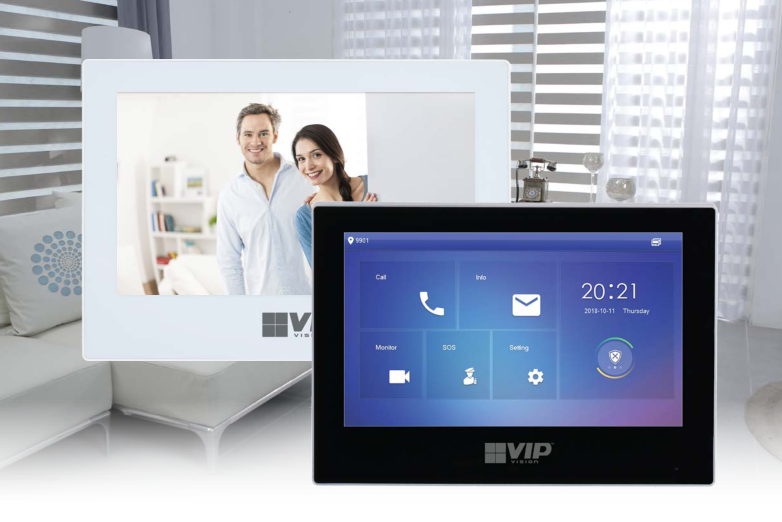

The INTIPMONKW is a touch screen indoor monitor that integrates into IP video intercom solutions. The monitor is used for two-way talk, featuring live-view of the door station camera.
Product features:
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Alarm system integration
• 7" TFT capacitive touch screen
• MicroSD storage (up to 32GB), card sold separately
*Unit must be opened to access microSD slot
Product features:
• Record and snapshot video calls/messages
• All calls and messages logged
• Prevent unwanted calls with Do Not Disturb mode
• Alarm system integration
• 7" TFT capacitive touch screen
• MicroSD storage (up to 32GB), card sold separately
*Unit must be opened to access microSD slot
Suggested Products
Residential PoE IP Intercom Door Station
INTIPRDSG
INTIPRDSG
4-port Unmanaged Fast PoE Ethernet Switch
VSPOE-SW4H
VSPOE-SW4H
Specifications
Monitor
Main Processor
Embedded Processor
Video Compression
H.264 ; H.265
Audio Input
Omni-directional Microphone
Audio Output
Embedded Loudspeaker
Bidirectional Talk
Support
Display Size
7" Colour TFT LCD
Display Resolution
1024 x 600
Alarm Support
Yes; 6 Input channels / 1 output channel
Operational Input
Capacitive touchscreen
Internal Capacity
MicroSD Slot, up to 32GB
Ethernet
10M/100Mbps adaptive
Network Protocol
RTSP; RTP; SIP; DNS; SSH
Environmental
Operating Temperature
-10 ~ +55°C / 10 ~ 90%RH (max.)
Installation
Surface Mount
Power Input
12VDC / 1A, PoE (802.3af)
Power Consumption
Operation < 6W
Dimensions
189.6mm x 134.6mm x 26mm
Weight
0.34kg
Warranty (Years)
4
